Flexible flat cable with poly-chloroprene sheath for decorative lighting. Suitable for use in dry, damp or wet areas, same as outdoor, as insulated conductor for lighting fixtures on squares, in gardens and similar.

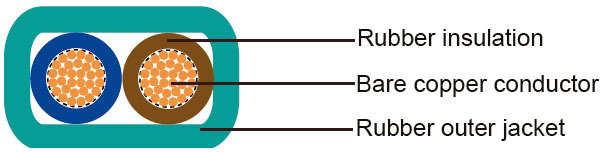

Construction

Conductor:		tinned copper conductor, fine wired stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295
Insulation:		rubber compound on ethylene-propylene basis (EPM, earlier: EPR), i.e. EI4 acc. to DIN VDE 0282 part 1 (DIN VDE 0207 T20, EI4)
Sheath:		rubber compound on poly-chloroprene basis (CR), i.e. EM2 acc. to DIN VDE 0282 part 1 (DIN VDE 0207 T21, EM2)
sheath colour:		green or black

Core colour marking:		acc. to HRN HD 308 S2 / VDE 0293-308

Temperature range:
at usage with bending:	-30 °C up to +60 °C
maximal operating temp.:	+60 °C
at short circuit of max. 5 s:	up to 200 °C
Nominal voltage:	Uο/U = 300/500 V
Test voltage:	2000 V
Maximal tensile strength:	15 N/mm²
Minimal inner bending radius:	4D
Behaviour in fire:	IEC 60332-1

Dimensions – number of cores x conductor cross-section	Construction of individual conductor	Conductor diameter	Insulation thickness	Distance between conductor centres	External diameter	Conductor resistance at 20 °C	Cu weight	Cable weight	Packing *
	nominal	nominal	nominal	min.-max.	min-max.	max.		approx.
N x mm²	n x mm	mm	mm	mm	mm	Ω/km	kg/km	Kg/km
2 x 1,5	30 x 0,25	1,6	0,8	6,7 - 7,0	5,0 x 13,0	13,3	28,8	122	CUT
2 x 2,5	50 x 0,25	2,0	0,8	6,7 - 7,0	5,7 x 13,3	7,98	48	147	CUT
